High-Grade Quicklock Scaffolding Supplier
- Three standardized workshops and full-auto CNC lines deliver a daily output of 500 tons.
- All accessories are produced in-house without brokers; factory visits are accepted anytime.
- Third-party test reports and complete international certifications support your bidding.
- Unified pipe specs enable free cross-year part replacement and cut specification loss.
- We supply high-def photos, installation videos, drawings and English specification manuals.
- Custom coating, no-logo OEM and small mixed orders ease your capital and inventory burden.
Your Top Choice for a Cost-effective Support System

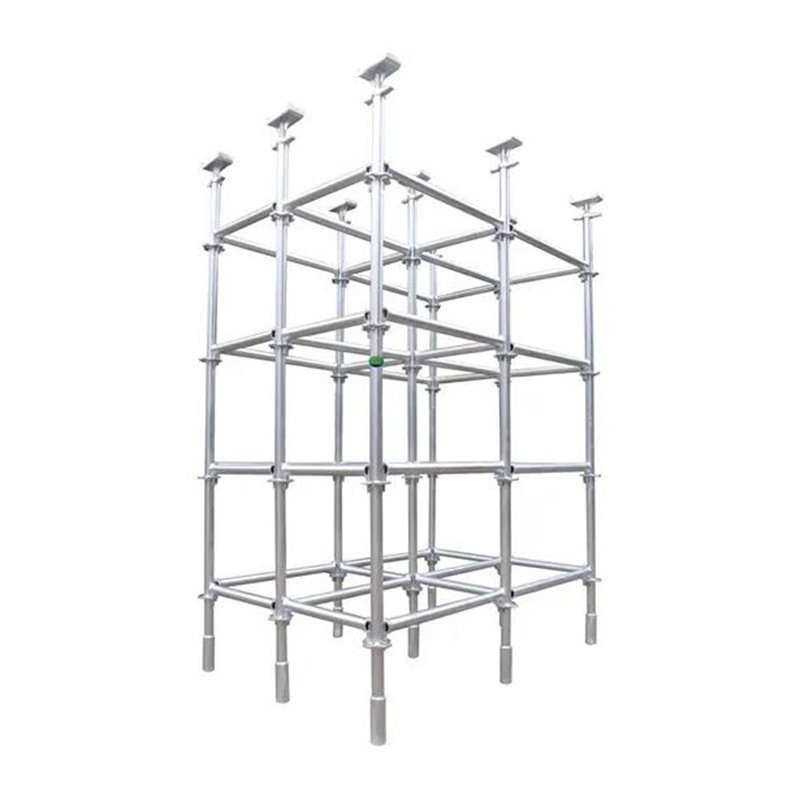

Xinliang quicklock scaffolding is a standardized four-way disk-coupling system. The upright posts feature a 600mm one-piece welded cross-joint disk, whilst the cast steel wedge-shaped locking heads self-lock upon impact,it requires no spanner.
All components follow standard specifications and suit most systems. It is widely used for high-rise concrete formwork, external wall construction, industrial maintenance and temporary stage platforms.
Contact us now for more reliable information !
Main Types of Quicklock Scaffolding
No matter your required specifications,we will help pick the best quicklock scaffolding for your project.
Light weight raises container load, fast small shipments for short-term small projects.
Strong anti-torsion performance with full global safety certifications for big infrastructure.
Thick zinc layer resists salt and acid, less maintenance for long outdoor rental assets.

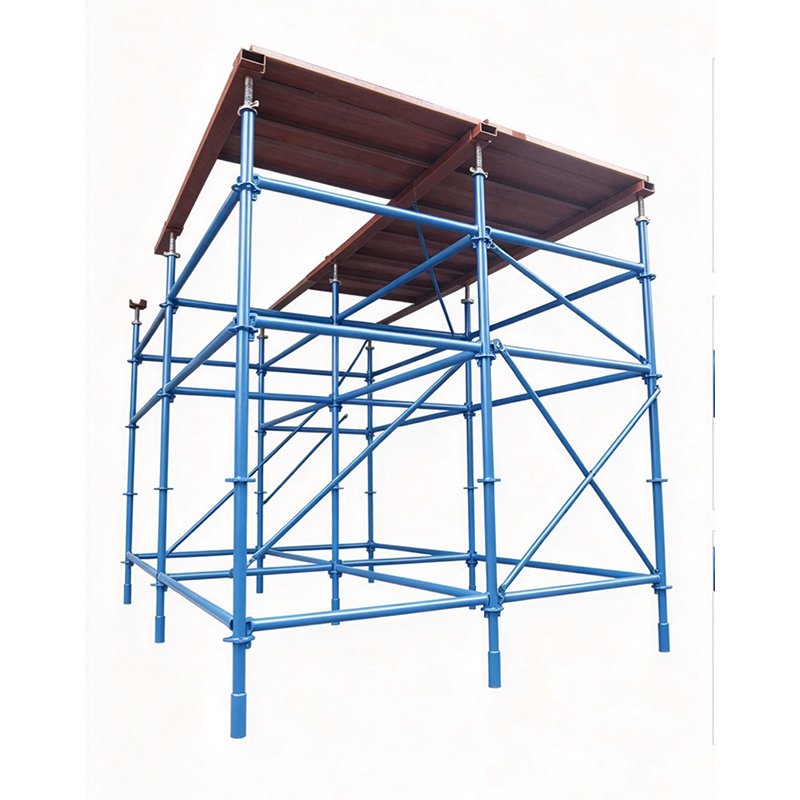

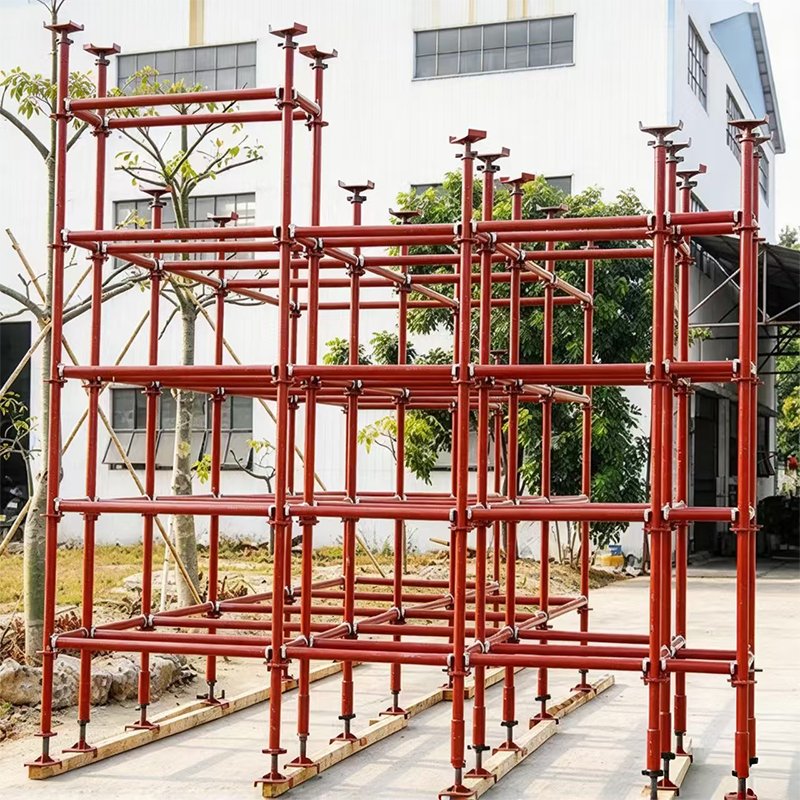

Low cost with multi-color options, ideal choice for short indoor civilian small projects.
Key Highlights of Our Quicklock Scaffolding
Each manufacturer’s quicklock scaffolding varies slightly; we may not be the best, but our products are sure to have the features you require.
Tool-free assembly in 3s, 30% faster erection with ultra-high pull-out resistance.
Steel grades cover all loads with standardized wall thickness without false marks.
Stable clamping force after 200,000 cycles to cut long-term rental loss costs.
Three surface finishes fit inland, coastal and chemical corrosive working sites.
Complete matching parts suit mainstream systems without secondary reconstruction.
90°four-way connection lowers site assembly error rate and rework waste.
Lighter than traditional scaffolds, it saves labor time on large construction projects.
Steel strapping, film and corner guards prevent damage in long sea shipment.
Strict Standardized Production Control
Our Quicklock scaffolding follows strict production rules. Tubes get cleaned, cut and fully welded, then coated. Every batch passes load and rust tests. Safe packing keeps goods intact for sea transport to ensure steady quality.

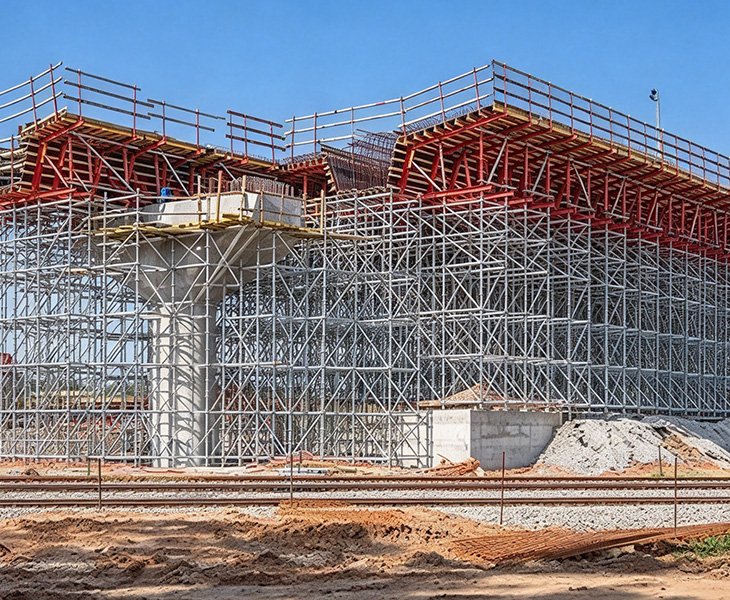

Optimized Quicklock Scaffolding for Real Needs
We fix common scaffolding flaws like bending, rust and broken locks. Thicker plates and full welds strengthen quicklock frames. Galvanized parts fully resist rust. Spare parts stay in stock to cut repair costs and raise rental profits.
Comprehensive quicklock scaffolding specifications, real photos, scene cases for full range of full-height scaffolding. Ideal for offline marketing and promotions..
ISO system, EN/ANSI safety standards, material testing, load reports, they are usable for bidding and customs declaration.
This provides a clear illustration of the quicklock scaffolding assembly process .The real-shot videos of factories can enhance our trust.

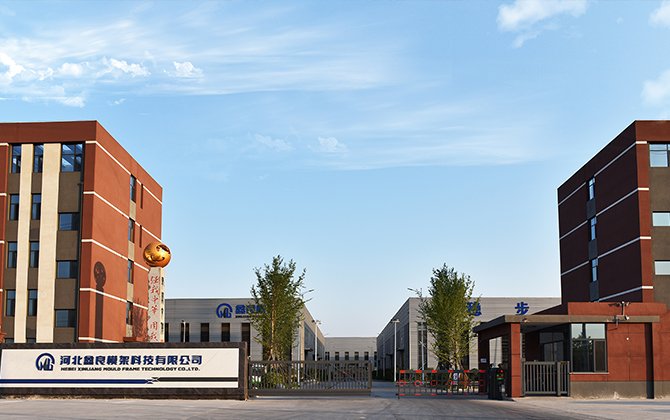

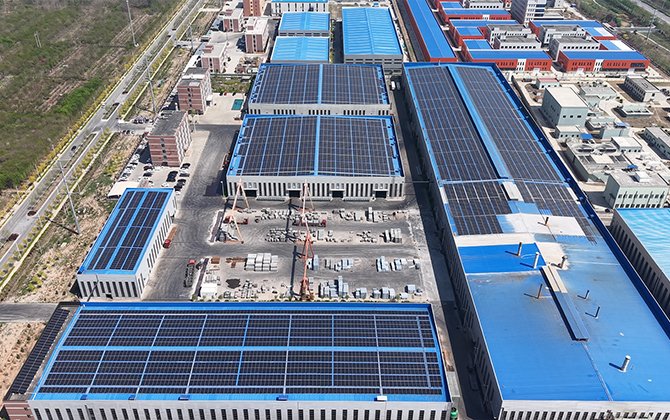

Robust Factory Capabilities You Can Rely on
XL has 150,000 ㎡ of standardized production workshops, a standing stock of steel pipes amounting to 10,000 tonnes, and fully automated production lines for pipe cutting, welding and galvanizing. With over a decade’s experience in exporting quicklock scaffolding, we serve clients in more than 20 countries worldwide. We welcome overseas clients to conduct on-site Kwikstage scaffolding factory inspections, and our production capacity can keep stable throughout peak and off-peak seasons, which can maximize eliminate stock shortages or price increases.
Real Overseas Project Cases
Bulk quicklock scaffolding available; we develop tailored solutions for infrastructure across the world.
This coastal oil plant faces hot weather and heavy salt spray. Clients rent quicklock scaffolding for long-term outdoor maintenance with frequent assembly. We provide full Q355 hot-dip galvanized sets. Thick steel bears heavy loads, and the thick zinc stops rust. Tool-free locks cut setup time. After three years of reuse, frames have little rust and cut re-purchase costs.
This southern building project has tight schedules and rainy damp sites. Builders pick low-cost Q235 painted quicklock scaffolding, with thick Q355 poles for heavy basement areas. Light tubes move easily on muddy ground, and mixed shipments fit phased construction. All parts can be reused for small later jobs to lower overall spending.

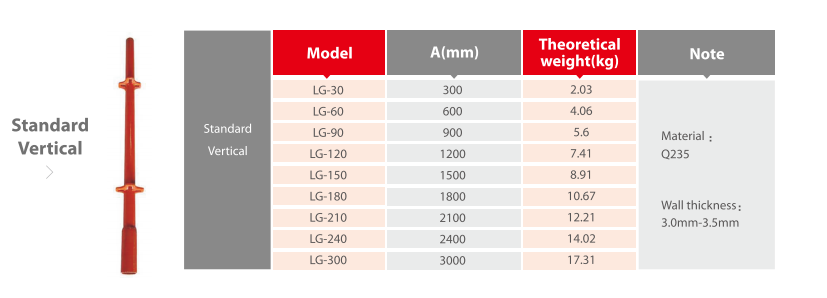

- Standard Vertical

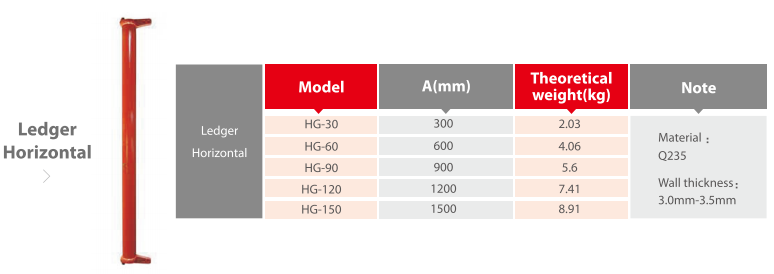

- Ledger Horizontal
We worked together for two years, the product specifications are standardized, components from different batches are interchangeable, XL’s quicklock scaffolding provides a comprehensive range of promotional materials, local wholesale distribution runs smoothly, and the sea freight packaging arrives intact with no damage.
African Building Materials ImporterWe purchase hot-dip galvanized quicklock scaffolding for year-round rental at coastal construction sites. They retain their shape even after repeated assembly and disassembly, show no signs of rust after two years of use, and XL responds promptly to our request.
Australian Rental CompanyHeavy-duty quicklock scaffolding are used for high-rise formwork projects. On-site erection is significantly faster than with traditional scaffolding systems, it effectively shortens the concrete construction schedule and leads to a marked reduction in labour costs.
Southeast Asian General Contractor
It only connects at 90 degrees and cannot fit curved surfaces. Choose 8-way ringlock scaffolding for curved special projects.
Yes. All our tubes, discs and locks follow unified standards. All accessories from any order fit and replace each other freely.
We allow mixed Quicklock scaffolding loading in one full container. Mix economy, heavy-duty, and galvanized frames and parts to cut your overstock risks.
Pick Q235 for short indoor small jobs with tight budgets. Choose thick Q355 for rental, bridges, heavy pouring and long outdoor works.
Standard-size quicklock scaffolding are always in stock. We cut non-standard lengths with CNC machines; just talk with us to confirm the lead time first.
Full Guide to Quicklock Scaffolding Selection
Core Design of Quicklock Scaffolding
Quicklock Scaffolding is a 4-way wedge self-locking modular scaffolding. Cross four-hole discs are welded on vertical tubes every 600mm. Every horizontal bar has one-piece cast steel wedge locks. Workers tap wedges to lock parts tight; only a hammer is needed, no other tools.
Different from multi-direction ringlock scaffolds with complex discs, quicklock scaffolding only connects at 90 degrees (up, down, left, right). This simple structure cuts manufacturing costs and makes installation easier for workers. That explains why it sells well among small and medium rental firms in Southeast Asia, Africa and Australia.
The self-lock system passed 200,000 fatigue cycle tests. Lock force drops less than 4% after repeated assembly and disassembly. Its pull and torsion resistance beat local basic construction standards. The frame stays stable in strong wind and rarely tips over. It works safely for floor concrete pouring and high-rise exterior wall jobs.
Three Material Types & Suitable Working Sites
- Q235 Economical Thin-Wall Version
Vertical tubes are standard 2.75mm carbon steel. Light weight lets more tubes fit into one container and lowers sea freight fees. It fits one-off short-term construction projects and small restocks for local building stores.
Users do not need to reuse the scaffold for years after projects finish. It only suits short work in dry inland areas. Do not rent it long-term near coasts or chemical factories with corrosive air.
- Q355 Heavy-Duty Thickened Version
It adopts high-strength low-alloy steel with 3.25mm thick vertical tubes. Welds between locks and tubes are fully sealed with CO₂welding. Stamped ribs strengthen joint discs. One single vertical tube can hold up to 70kN weight.
Its strong load capacity fits heavy concrete work such as basement high formwork and bridge beam casting. It resists wear from frequent assembly, making it the top pick for overseas rental companies buying long-term assets.

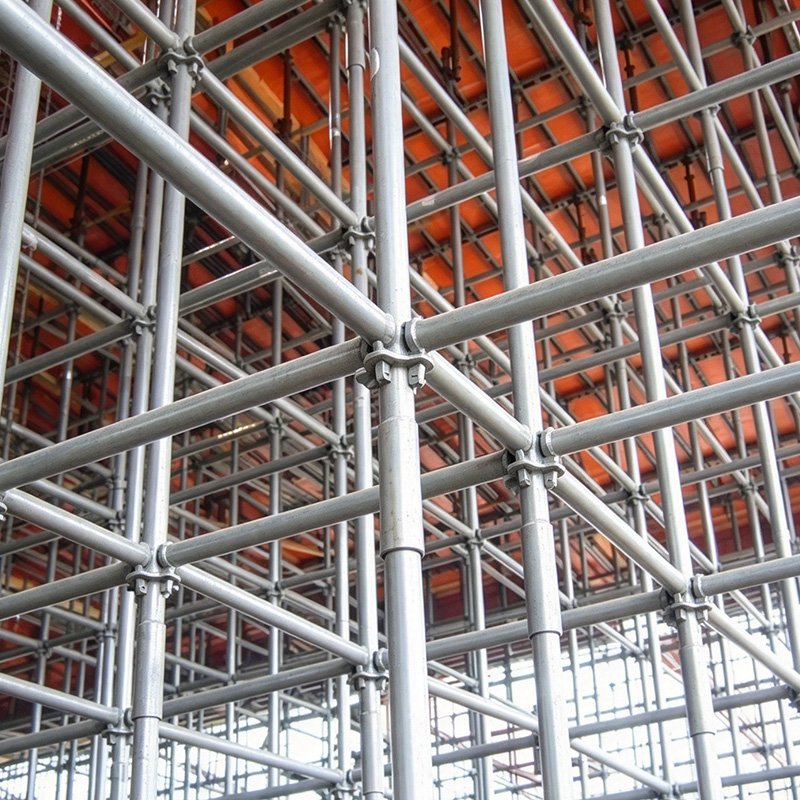

- HDG Hot-Dip Galvanized Anti-Corrosion Version
All quicklock scaffolding steel tubes get shot blasting first, then fully dipped in hot zinc liquid. Zinc coating over 85μm covers the inside and outside of tubes. Locks, pins, steel planks and screw jacks all receive full galvanization, and welds get extra zinc sealing to stop hidden rust spots.
It passes over 1000-hour salt spray tests. It stays rust-free for years on offshore platforms, oil refineries and power plants with acid and alkali fumes. It greatly cuts labor and material costs for later maintenance.
Matching Solutions for Different Scenarios
- Exterior Wall Work of Residential & Commercial Buildings
Choose standard painted Q235 quicklock scaffolding with standard steel planks and simple safety parts.Total purchase costs are well controlled. It fulfills basic needs.
- Basement & Bridge High Formwork Projects
Pick heavy-duty galvanized Q355 quicklock scaffolding, paired with thick solid U-head jacks and adjustable bases. They spread heavy vertical pressure from concrete pouring and prevent frame bending or collapse.
- Offshore & Coastal Industrial Maintenance Projects
Use full hot-dip galvanized kits including all supports, walk planks and stair parts. They stand constant salt fog from the sea and extend the scaffold’s rental service life.
- Temporary Stage Setup
Light painted tubes assemble and take apart fast, easy to pack and ship for events held in different cities repeatedly. Matte galvanized surfaces also keep a neat look for exhibition venues.
Common Overseas Purchasing Traps and Useful Tips
Many new overseas quicklock scaffolding buyers face three typical problems: false material labels, poor welding craft and inconsistent sizes.
Some factories lie about tube wall thickness. Thinner tubes reduce load capacity and bring safety risks for long-term use. Spot-welded locks only have thin surface welds and crack easily after frequent disassembly; full welds double service life. Uneven sizes across batches are the most common issue. Mismatched parts cannot swap, leaving lots of useless inventory.
Buy from source factories with complete production lines and independent material labs. You may visit workshops to check tube cutting, welding and anti-rust processes on site. Uniform standard sizes solve issues of incompatible parts, thin raw materials and low-quality welding.
Select suppliers that support mixed container shipments and separate spare part orders. This meets flexible stock needs of small traders and rental firms, and reduces capital tie-up and inventory pressure.
